5. Linking the Lines.

As they are found, the lines are placed in a container. After all lines have been found, the first and the last vexils are thrown in at the front and the back of the container. These provide 'ties' to the node points. The container is then scanned, and the start point, every intersection point between successive lines, and the end point is output to disk.

5.1 Special cases.

The exactness constraints guarantee that lines are exact as far as the string goes. If the line projects beyond the end of both strings before it intersects the next line, then exactness is not guaranteed.

To handle this problem a simple test is needed to identify such cases.

5.1.1 When a Link-point is Else When.

Figure 14Link point1 is in the "Future", Link point2 is "ElseWhen"

The heading of this section is the only simple and intuitive description of this test I can think of, hence I will have to settle for a technical description. Indeed the test itself was derived from inspection of all possible cases.

Figure 15. Previous example after smoothing.

The link-point is the point which joins the two strings being approximated.

The join-point is the point where the two approximating lines intersect. (Normally this point would be output from the program).

Make an affine transformation of the coordinate system to a new non-orthogonal coordinate system which has the join-point as its origin and the two approximating lines as its axes.

Calculate the coordinates of the link-point in the new coordinate system. If the link-point is in quadrant 2 or 4 of the new coordinate system then it is else when, and the lines extend beyond the end of both strings.

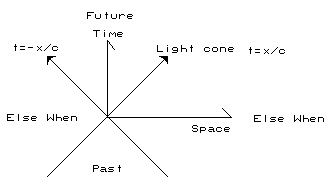

Figure 16. Spacetime diagram illustrating the concept of "Else When".

In the unlikely event you should wonder where the name "Else When" comes from, it comes from Special Relativity, where space-time is divided into three regions :-

Past :- Those points in space-time that could causally affect a particle at the origin.

Future :- Those points in space-time that could be causally affected by a particle at the origin.

Else When :- Those points of space-time that cannot causally affect or be affected by a particle at the origin.

The exactness constraint can only be violated in the "Else When" case, but to actually calculate when the exactness constraint is violated is tedious in the extreme, but does not pose any technical or computational difficulties.

If the link-point is Else When then the following algorithm is used :-

  If exactness is not violated Then
    output the join point
  Else
    If  the join point is closer to the first vexil of the second
        string than the last vexil of the first string Then

      output the intersection of the first line and the last vexil
      of the first string.

      output the intersection of the second line and the last vexil
      of the first string.

    Else
      output the intersection second line and the first vexil
      of the second string.

      output the intersection of the first line and the first vexil
      of the second string.

5.1.2 Parallel lines.

As an extreme case of Else When, the two lines may in fact be parallel, thus there is no join point. In this event, the lines an either be parallel or anti-parallel.

Figure 17. Anti parallel lines.

Figure 18.Result of linking algorithm.

If as in Figure 17, the lines are anti-parallel then the two lines are joined via three points. The intersection of the first line with the last vexil of its corresponding string, the link-point that joined the original two strings, and the intersection of the first vexil of the second string with its corresponding line. The link-point is added to prevent too much of the pixel on the end being cut off.

Figure 19. String Resulting in two parallel lines.

Figure 20.Result of algorithm.

If as in Figure 19, the lines are parallel, then the link-point joining the two original strings is not added as the intermediate pixel is safe in this case.
