Estuary Function.

The lake is joined to the sea via a long (approx. 20km) narrow tidal channel. The behaviour of this channel, averaged over a tidal cycle of 28 days was modeled by Huizenga and Boroto using the Mike-11 model.

The salinity model uses a function of lake level vs estuary outflow to model the net effect of the narrows.

This function, (see Figure 3), calculated by Huizenga & Boroto can be parameterized as :-
equation261

Where l is the lake level, tex2html_wrap_inline3069, tex2html_wrap_inline3071 and tex2html_wrap_inline3073.

  figure160

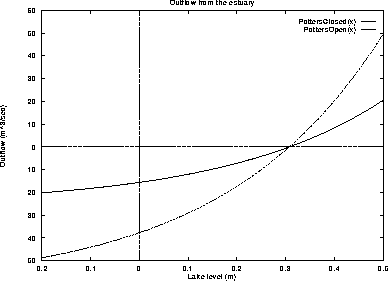

Figure 3: Function mapping lake level to estuary outflow.
